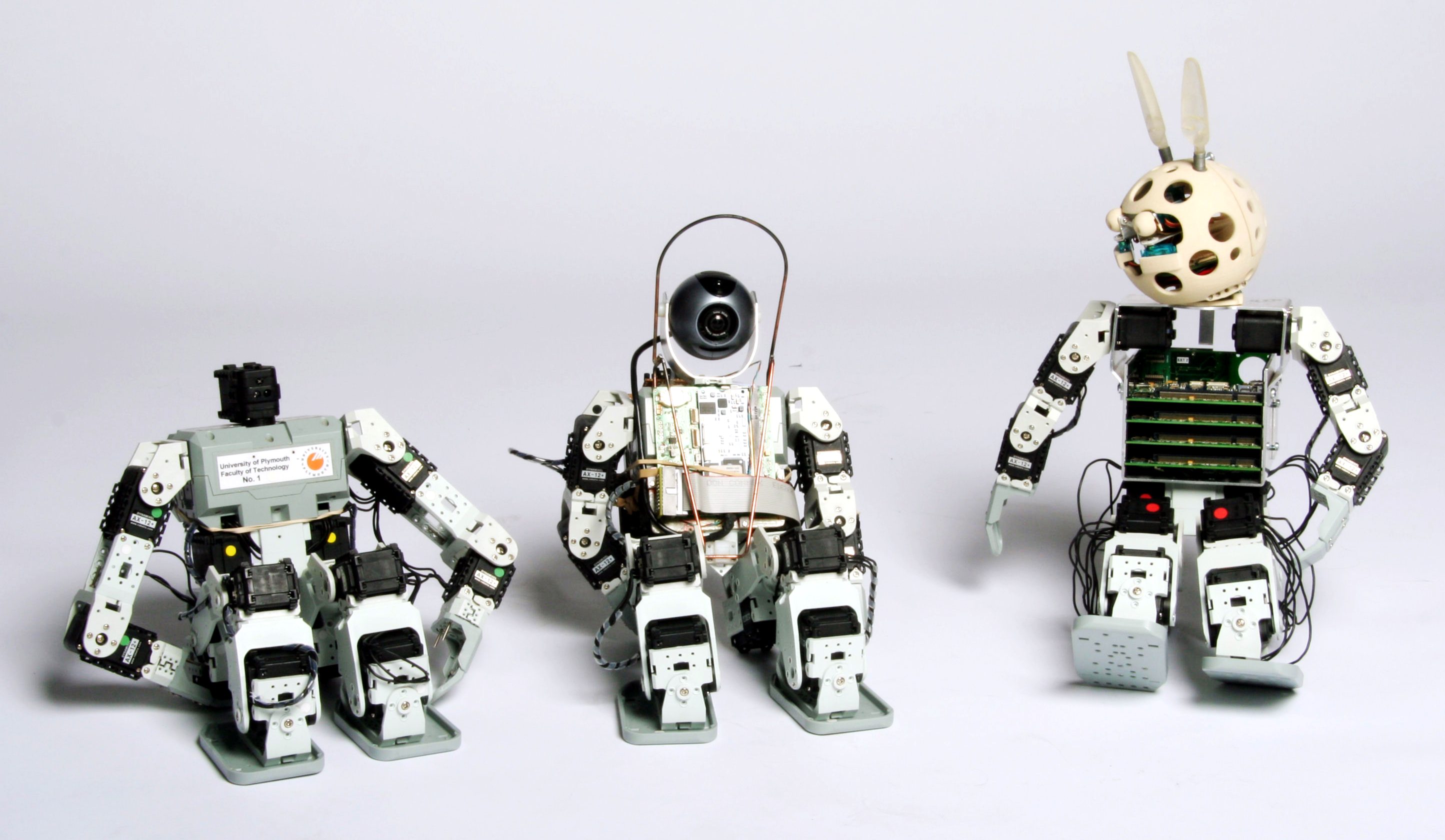

Packaging/mechanical design of prototype autonomous robot

Project brief:
To design the packaging and eye/neck mechanisims for the head and body of an autonomous robot prototype.
To provide sheet metal detail drawings and 3D *.stl files for manufacture.

Project delivered output:

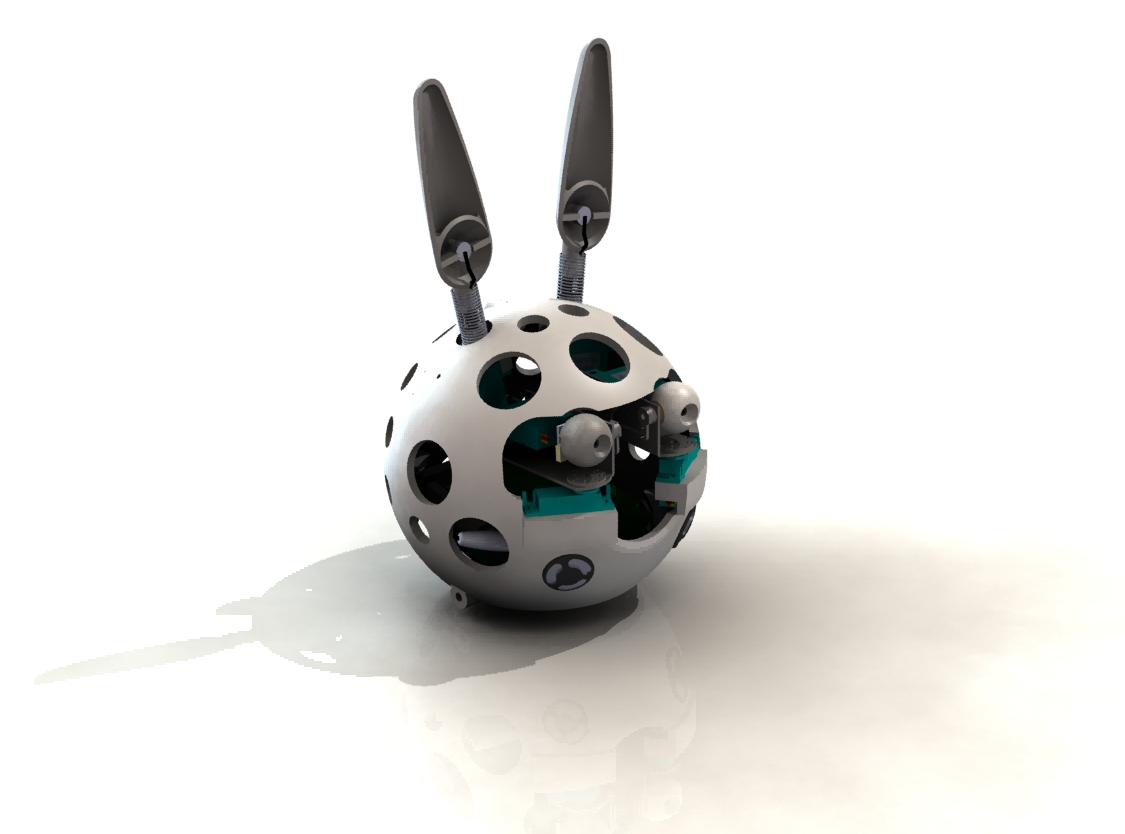

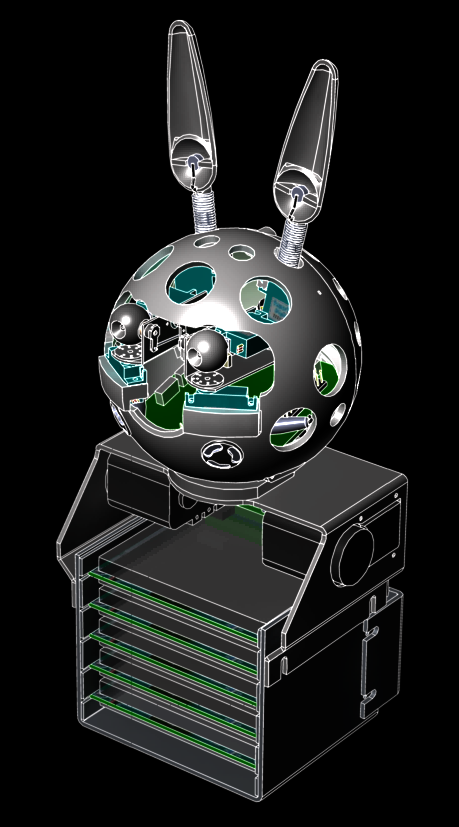

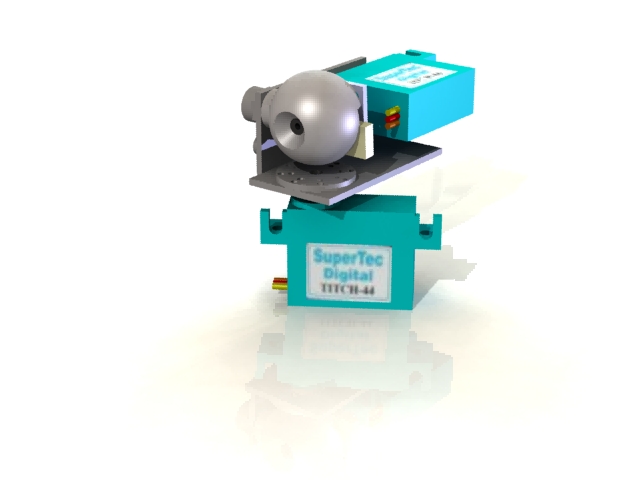

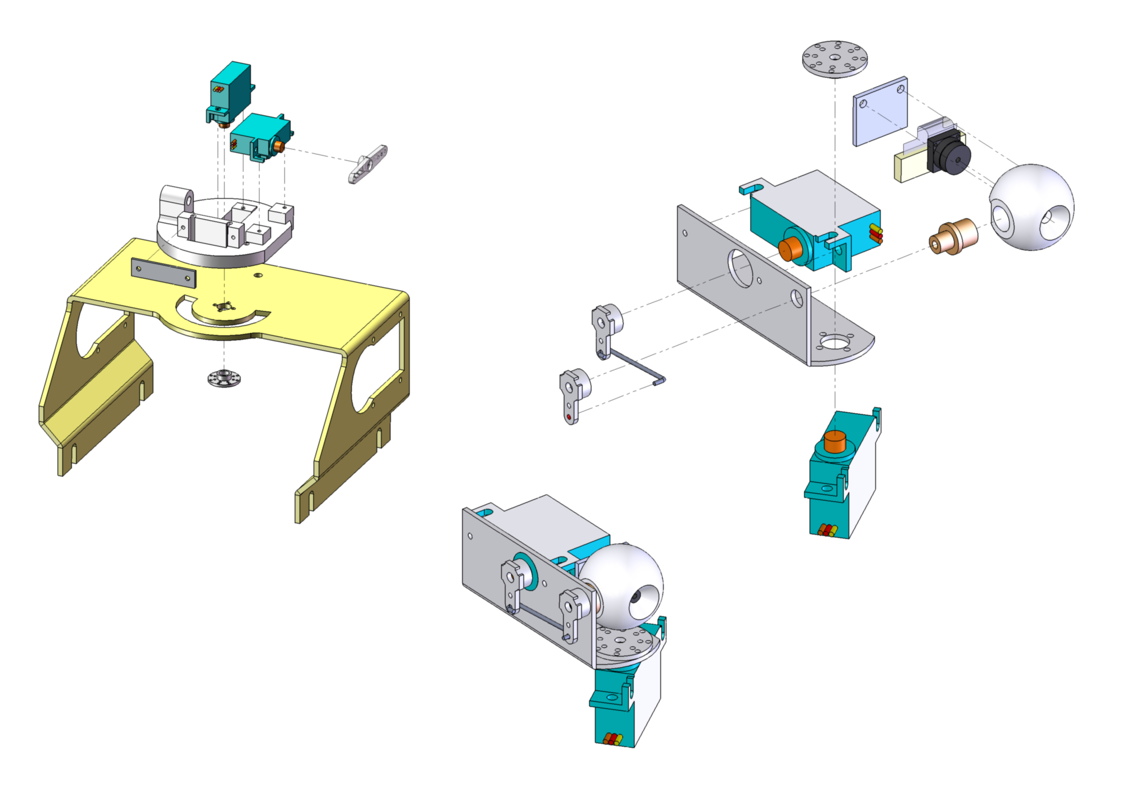

3D part and assembly design using SolidWorks:

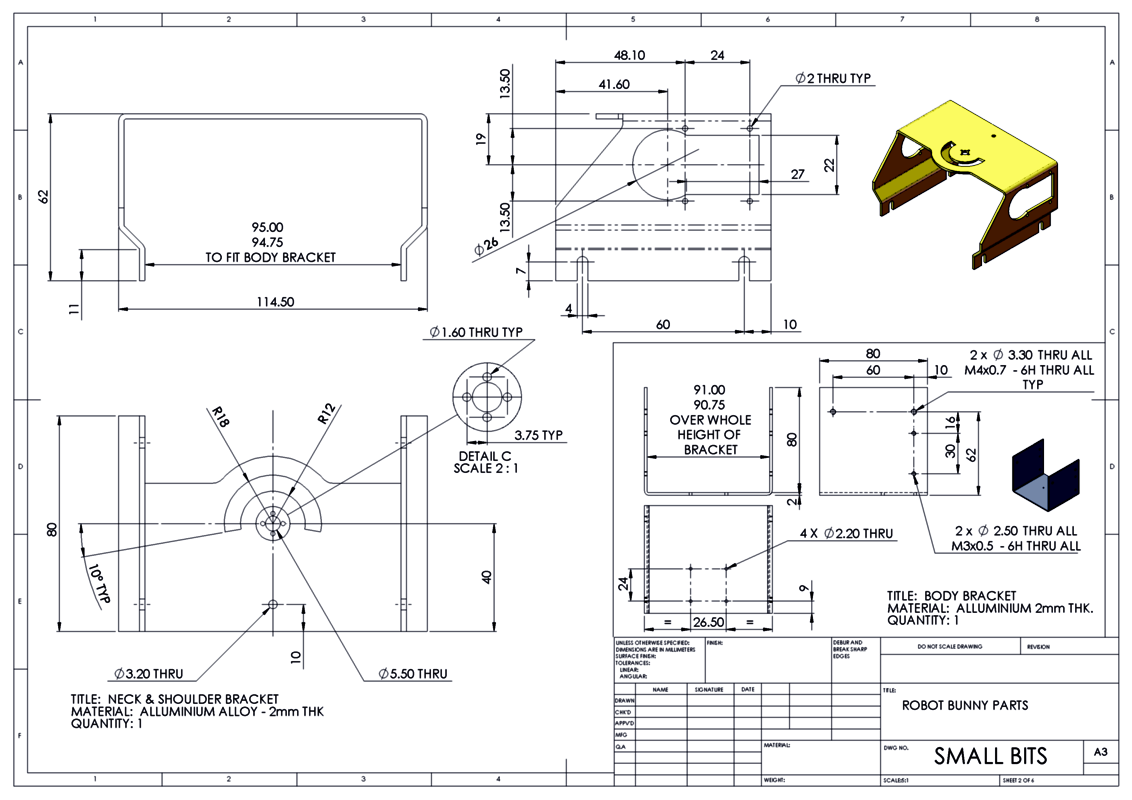

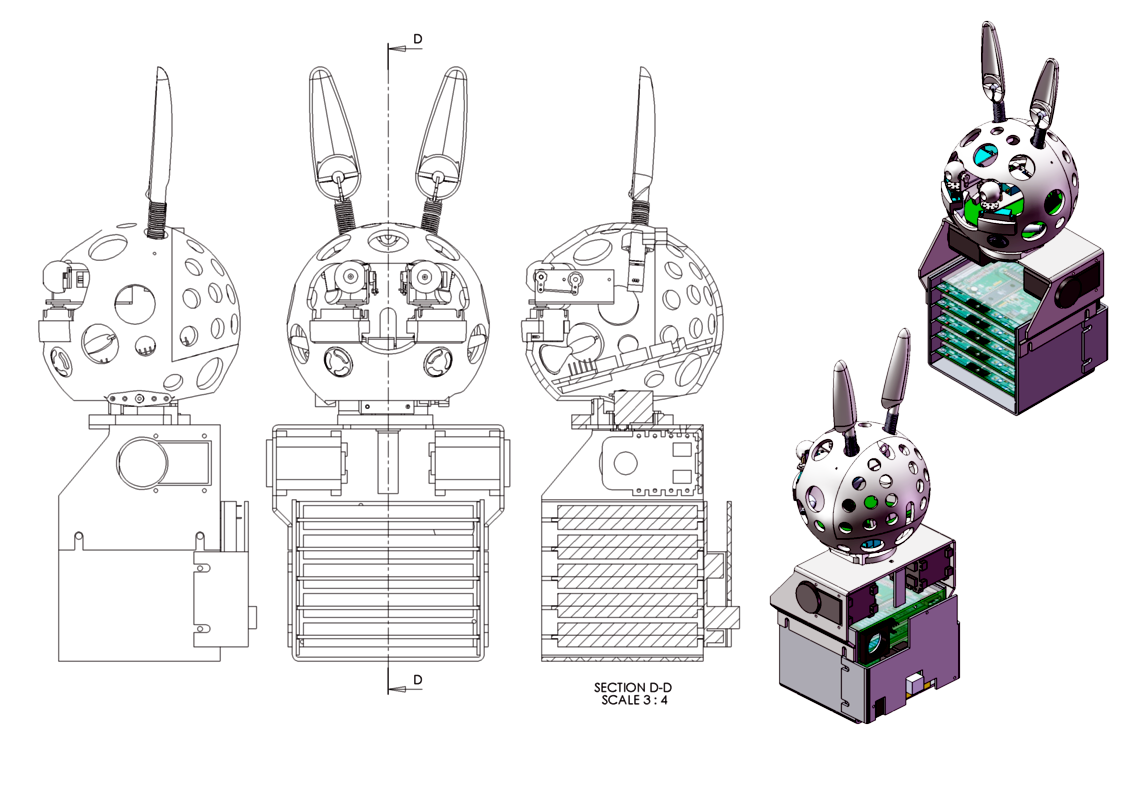

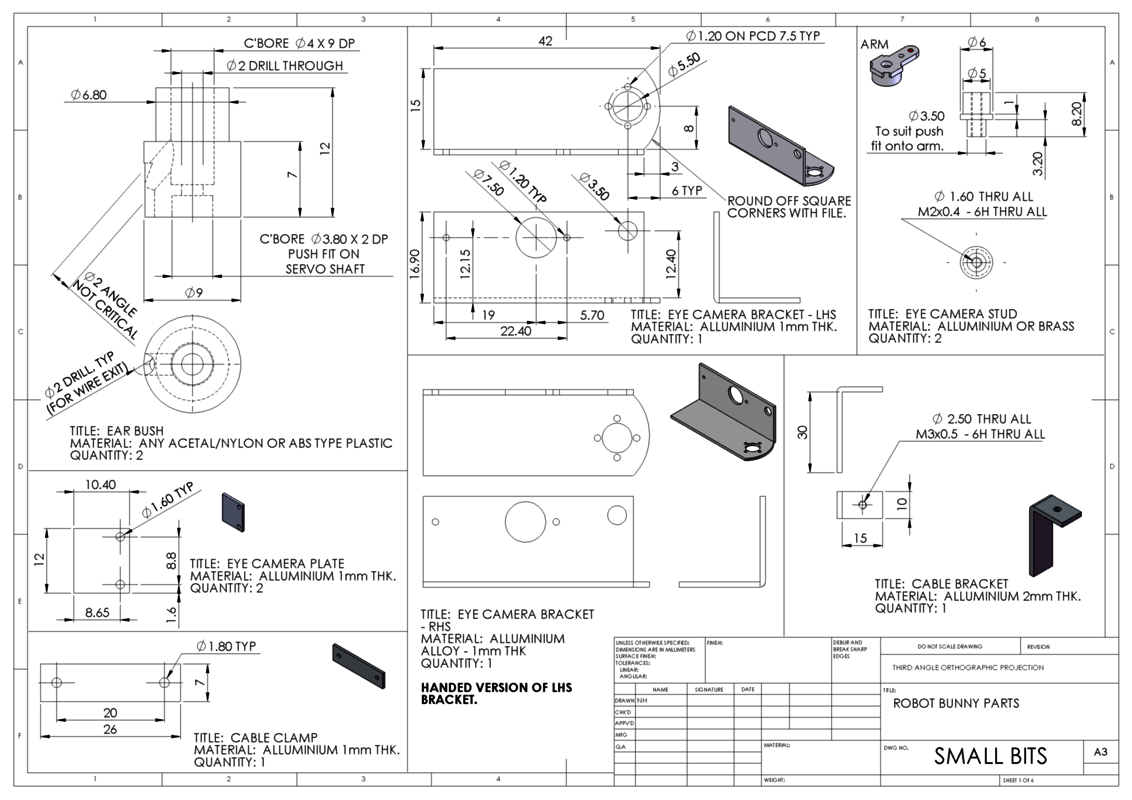

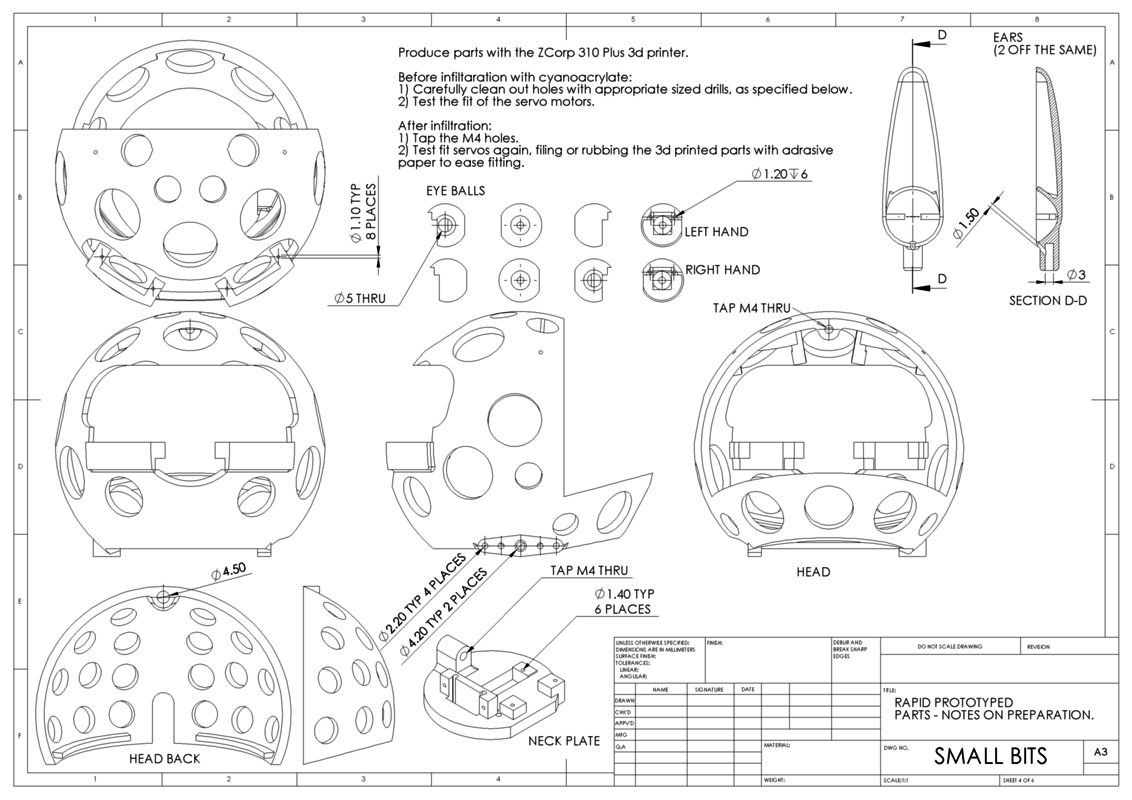

2D drawings created for manufacture and assembly:
