Wave tank modifications
|
|
| This project involved the
creation of a design modification proposal to increase the size of an
existing wave tank.

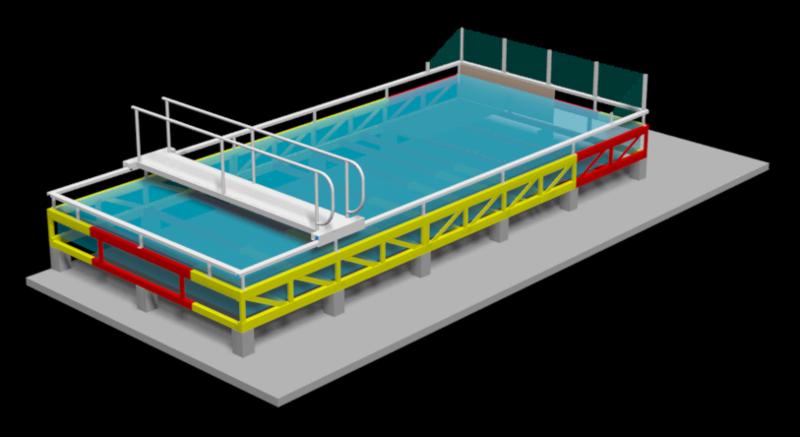

3D parametric models of the existing structural components and the new components were quickly created, assembled and used to create both the rendered images for presentation of proposed changes and detailed manufacturing drawings for tendering. Subsequent size change requests were able to be quickly implemented, literally in seconds, due to the 'parametric' nature of the CAD model. |
|
|
|
|
