Examples of project management, design and commisioning work carried out when employed by Mecelec Developments Ltd. Glos.

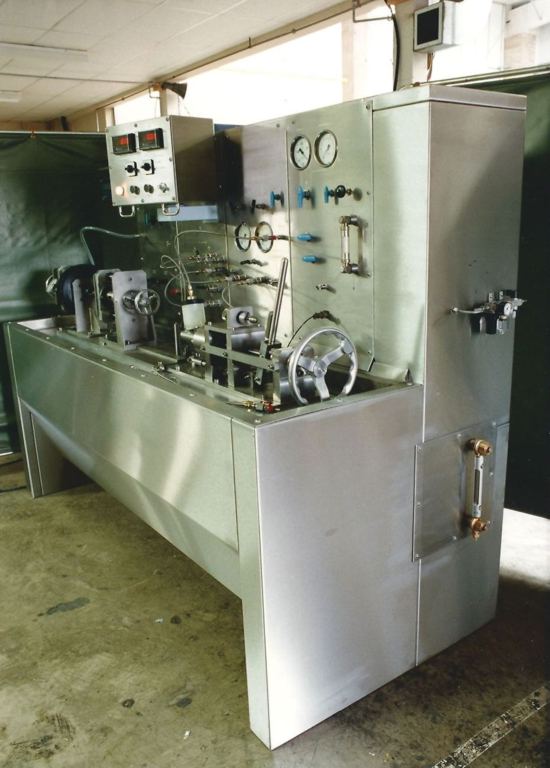

Hydraulic brake test rig Hydraulic brake master cylinder test rig.

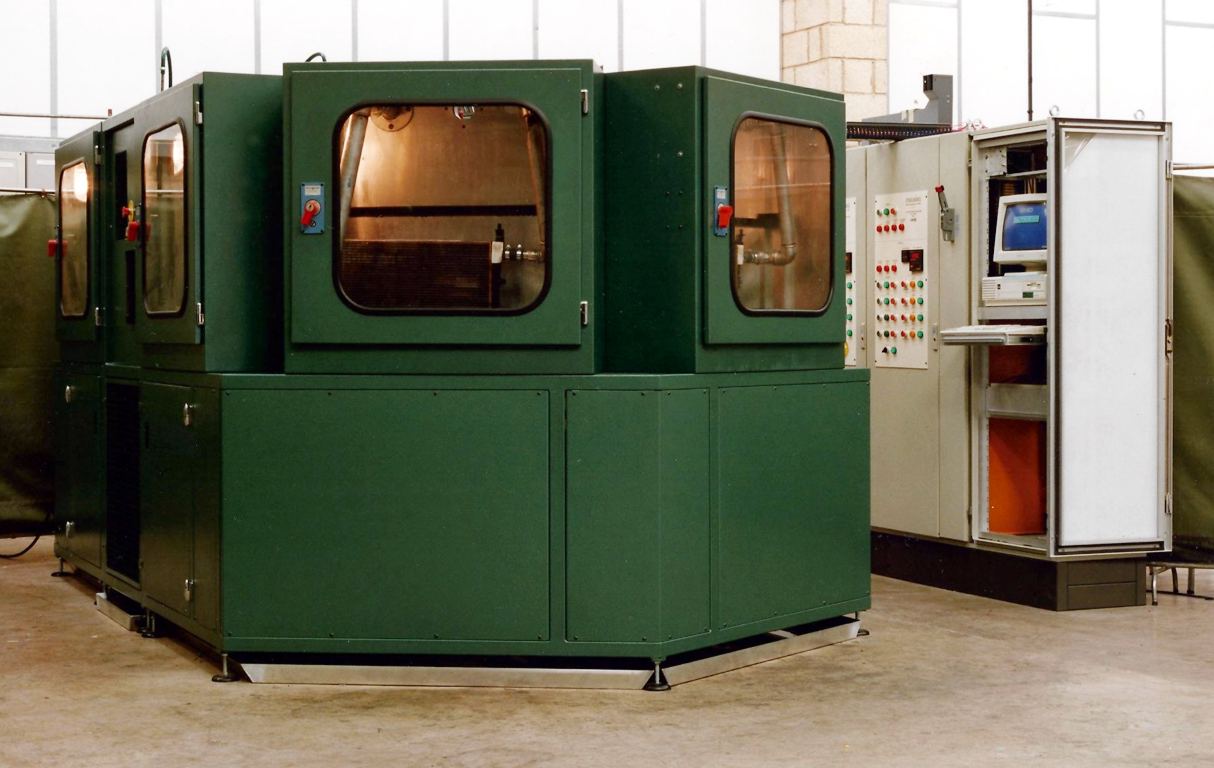

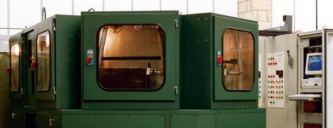

Heat exchanger endurance rig Radiator/heat exchanger endurance test rig.

Oil pump performane test rig

Production line oil pump performance test rig.

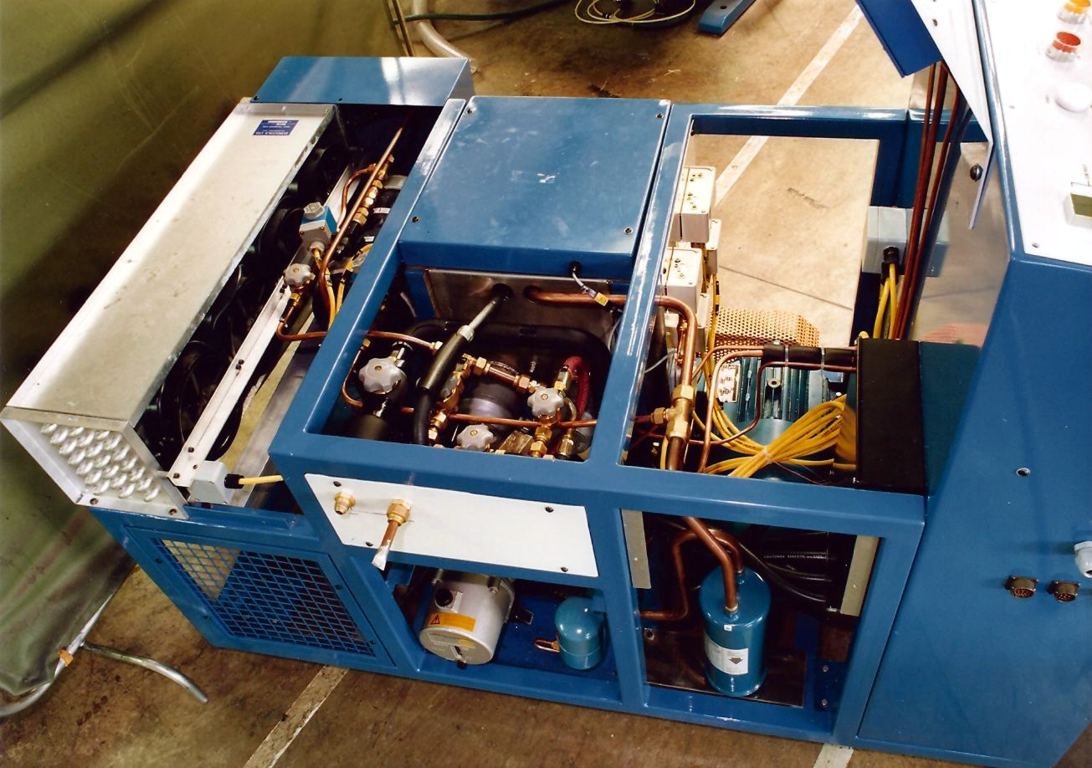

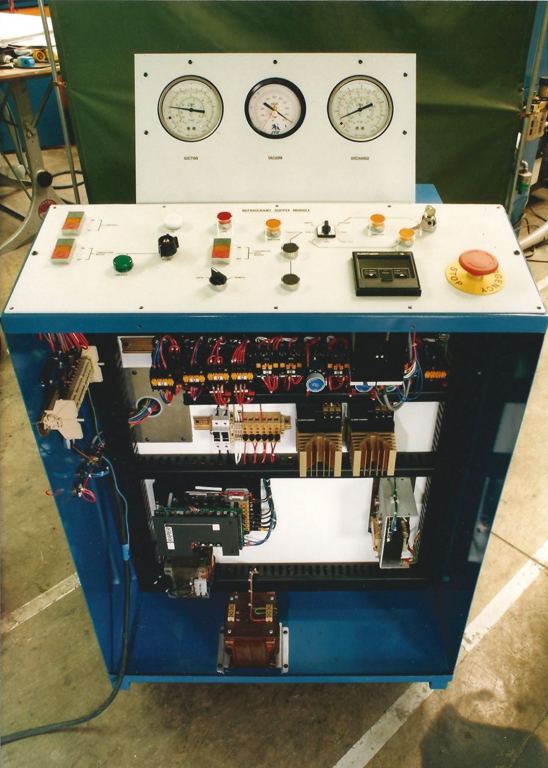

Refridgerant supply Refridgerant supply Refridgerant supply unit for automotive research and development equipment.

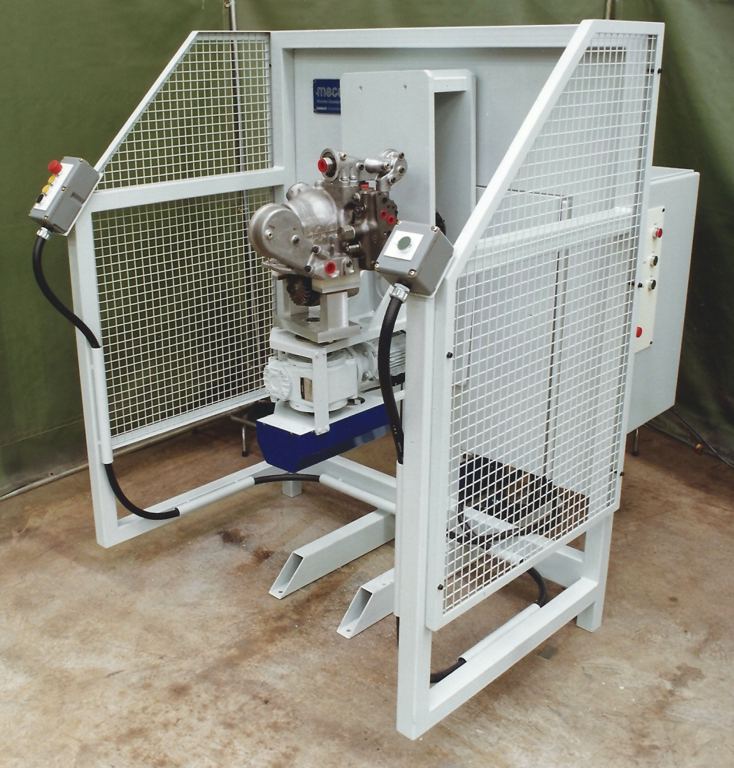

Pump assembly jig Tractor hydraulic pump production line assembly  jig.

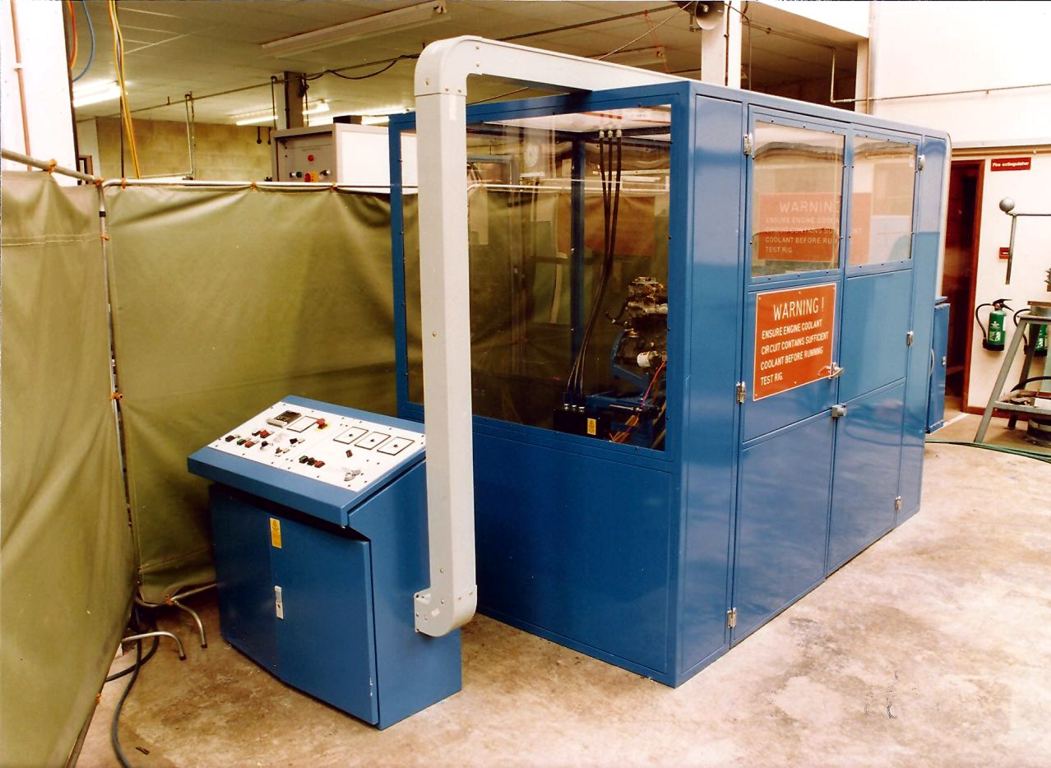

Block heating rig
Engine block induction heating rig, for engine manufacturer's research and development.
