Motorcycle chain guard

Project brief:
Design and supply a prototype stainless steel motorcycle chain guard.

Project output:
Creation of a 3D cad design and data (2D *.dxf files) required to manufacture the prototype flat pattern.
Supply of prototype samples, via a third party (CNC laser cutting service).

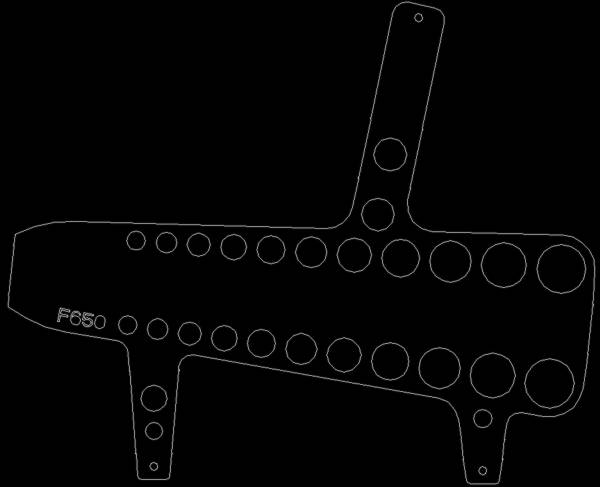

Design model, CAD      dxf profile

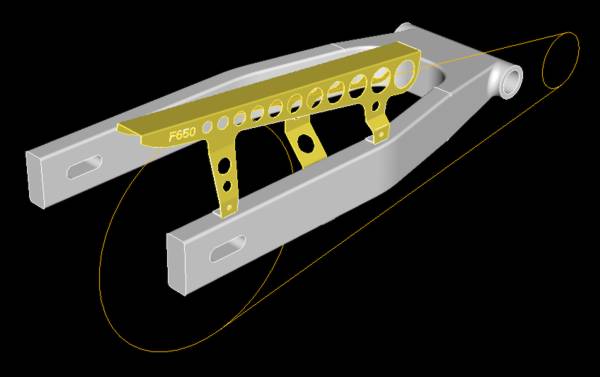

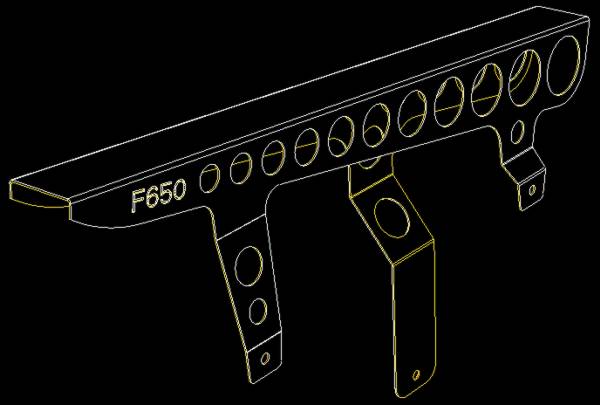

finished part in CAD
