Turbine blade test rig design study

Project brief:
Develop an initial design study for a bi-directional axial flow water turbine blade test rig.

Project output:

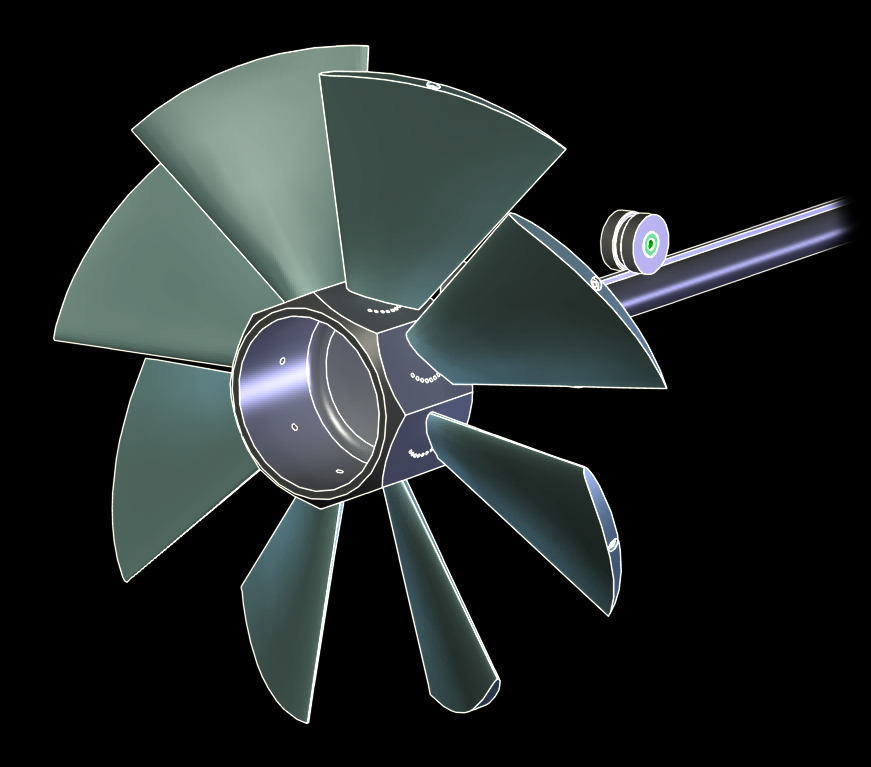

3D part and assembly modelling using SolidWorks:

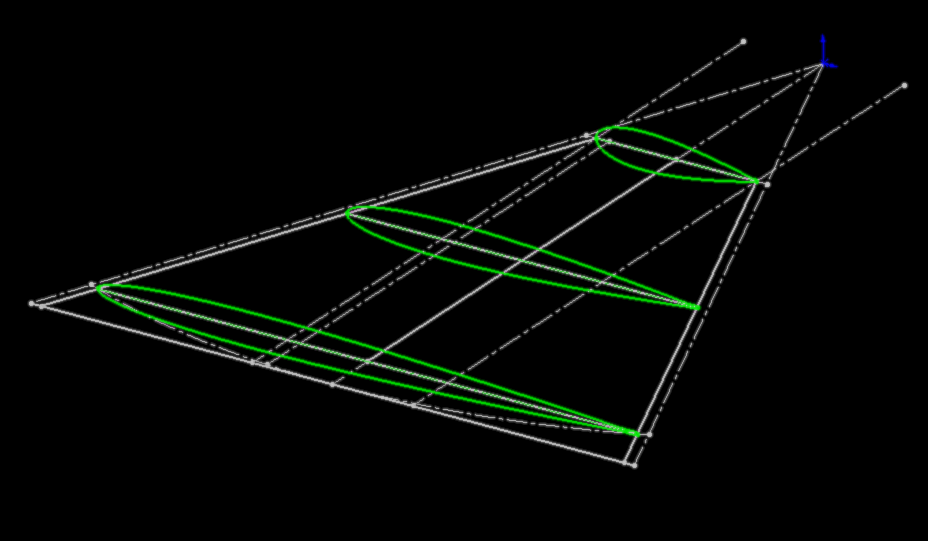

The blade geometry was created by lofting through curves defined by NACA aerofoil point data.

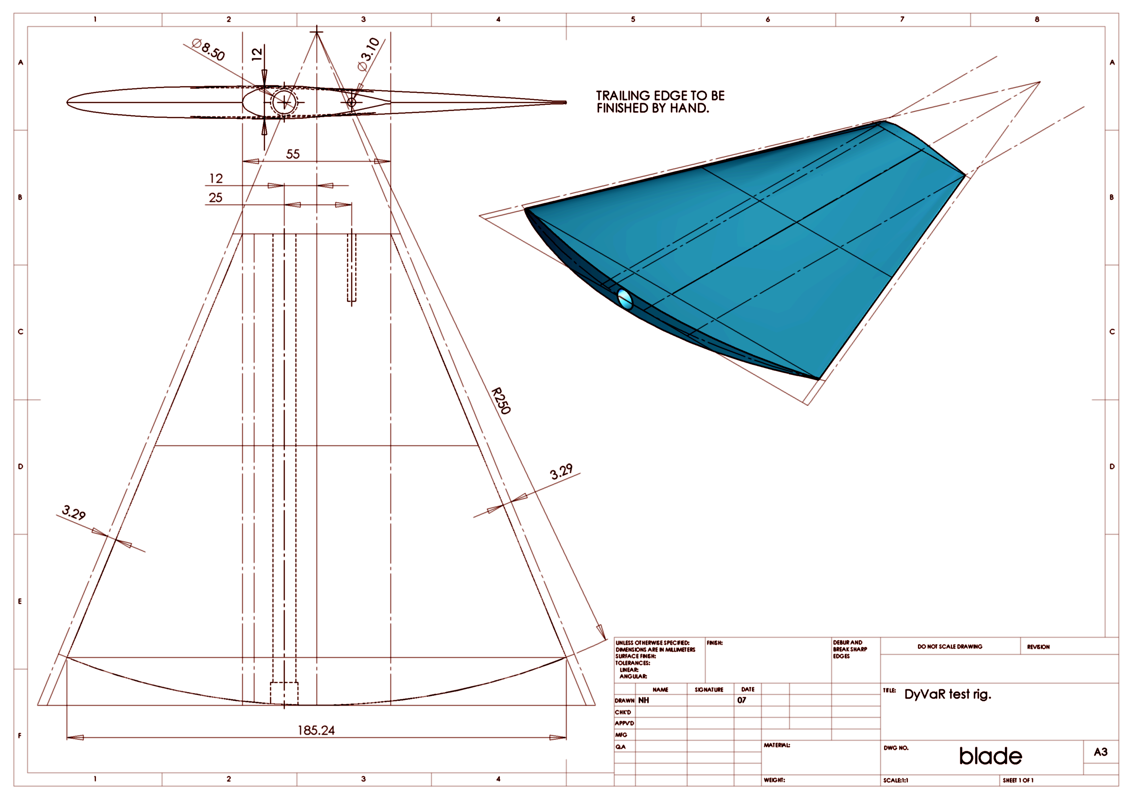

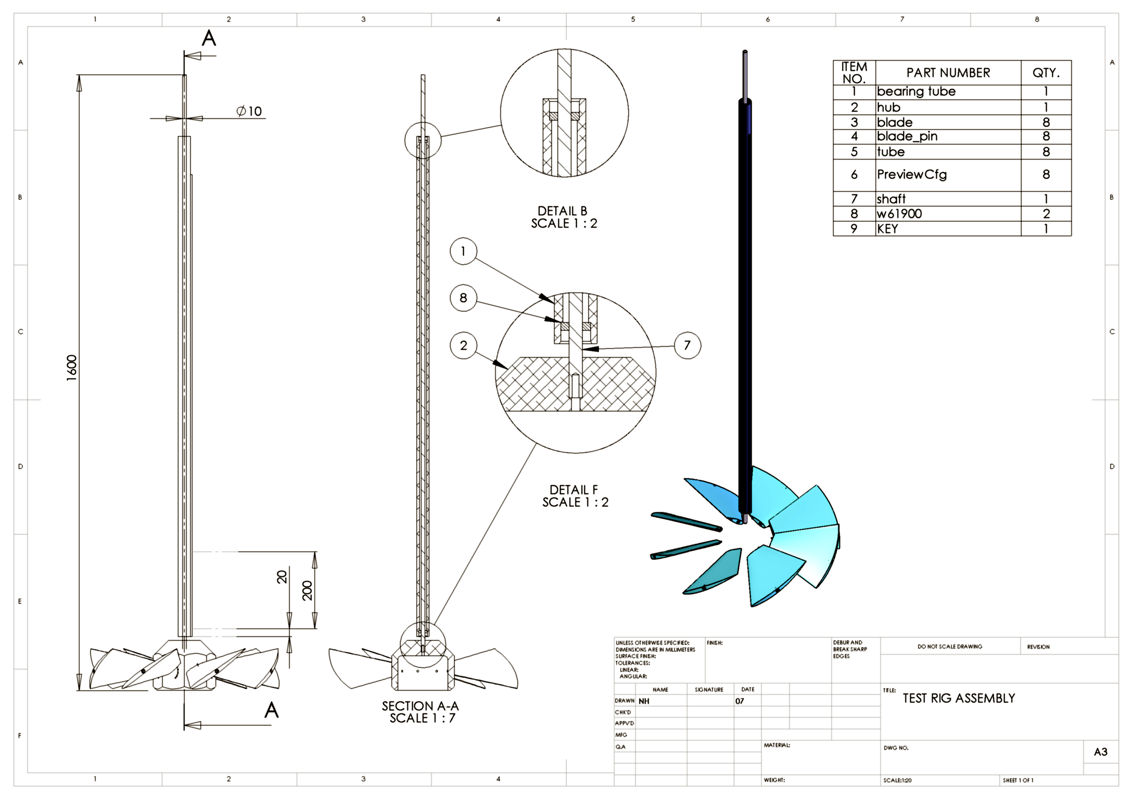

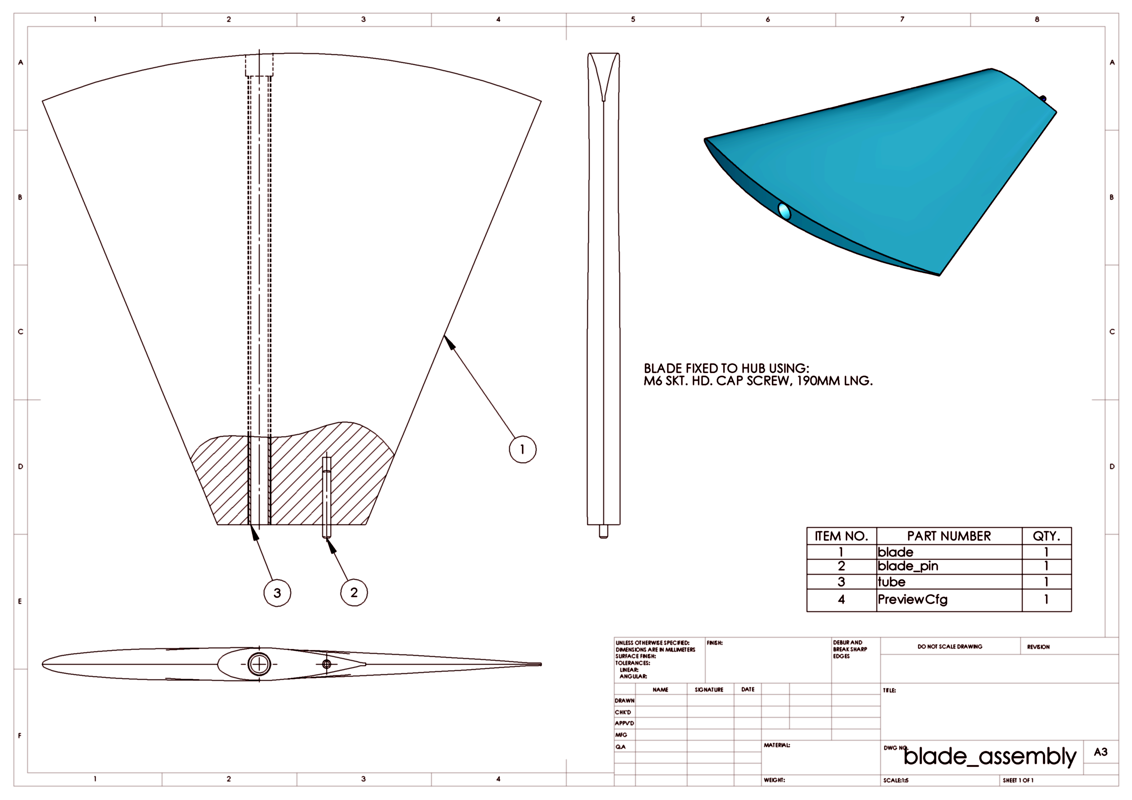

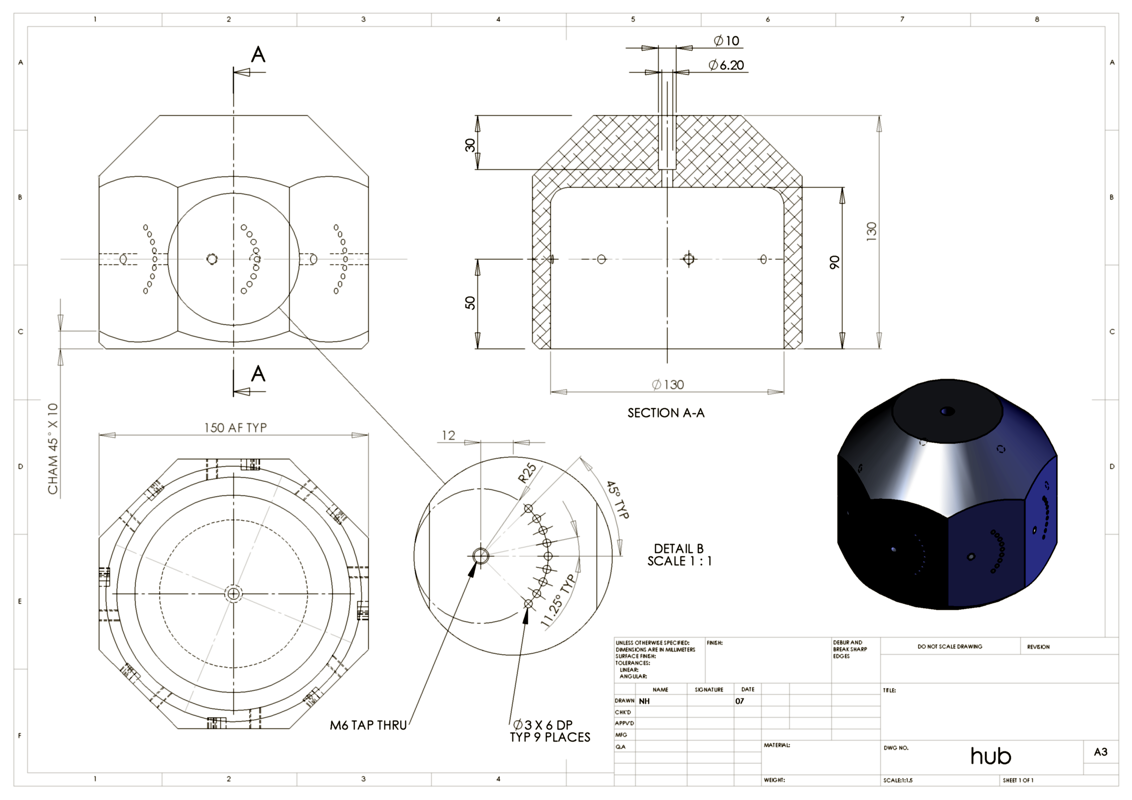

2D drawings created for manufacture:
